AP CYLINDER

If you do not have an account on our site, please fill in the registration form or log in.

Please note, trade price list is available for registered users only.

Offering the maximum level of security for entrance doors.

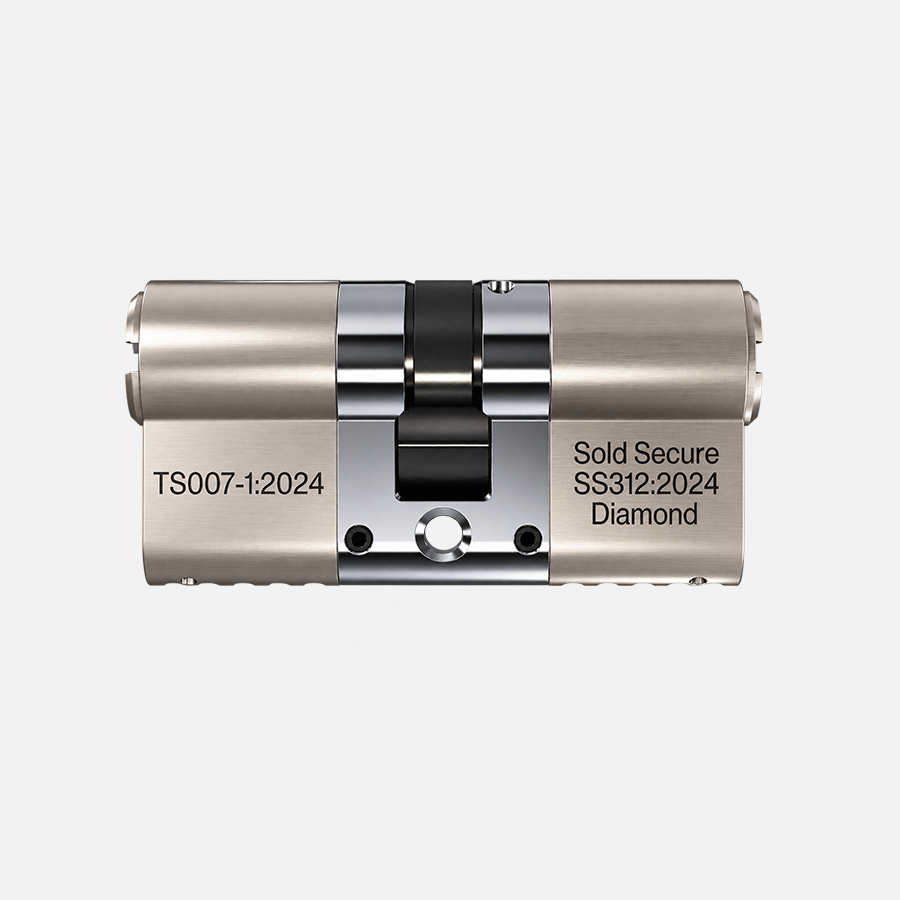

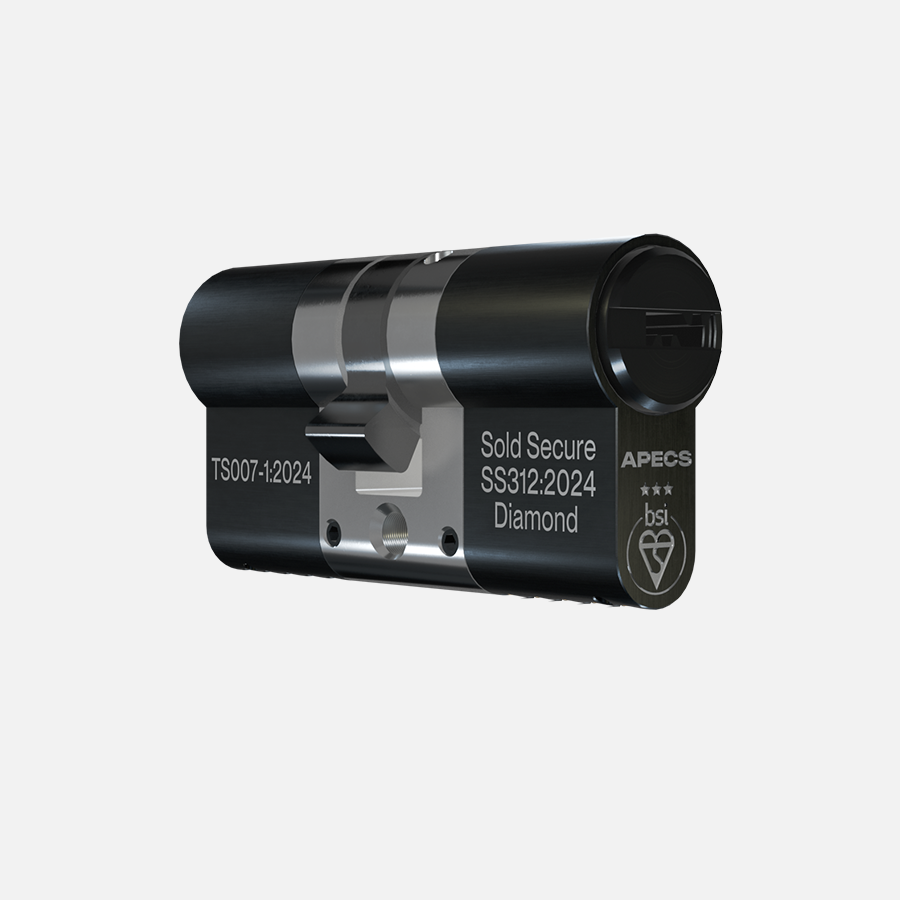

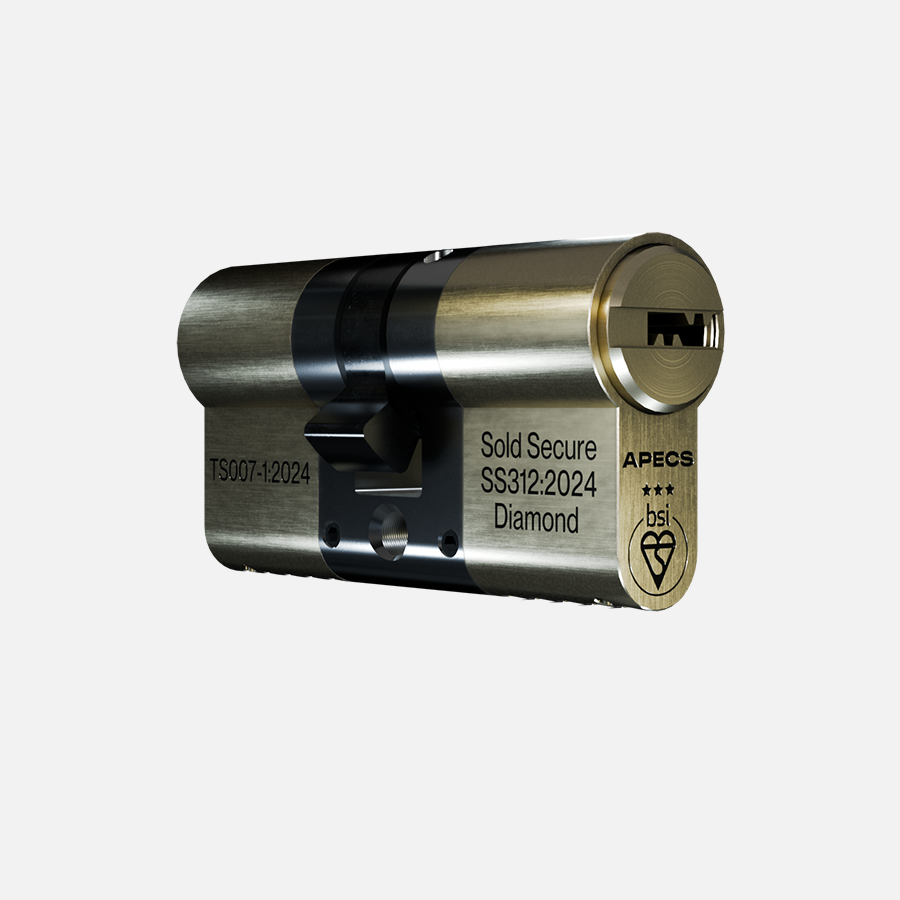

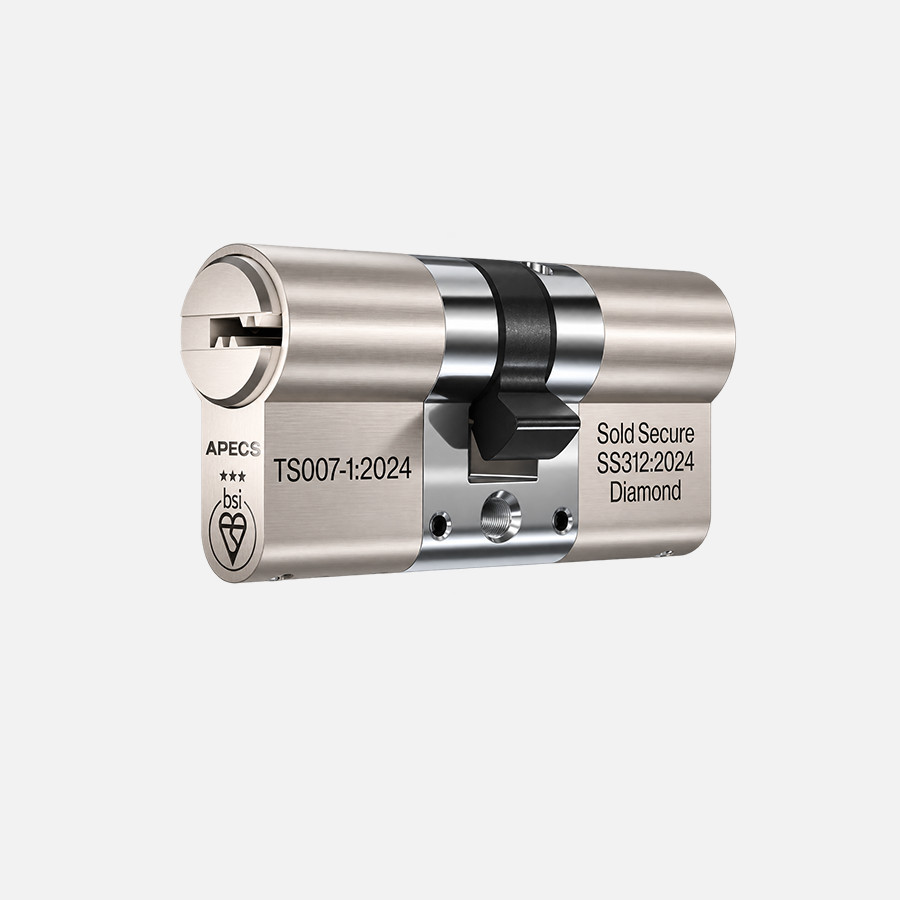

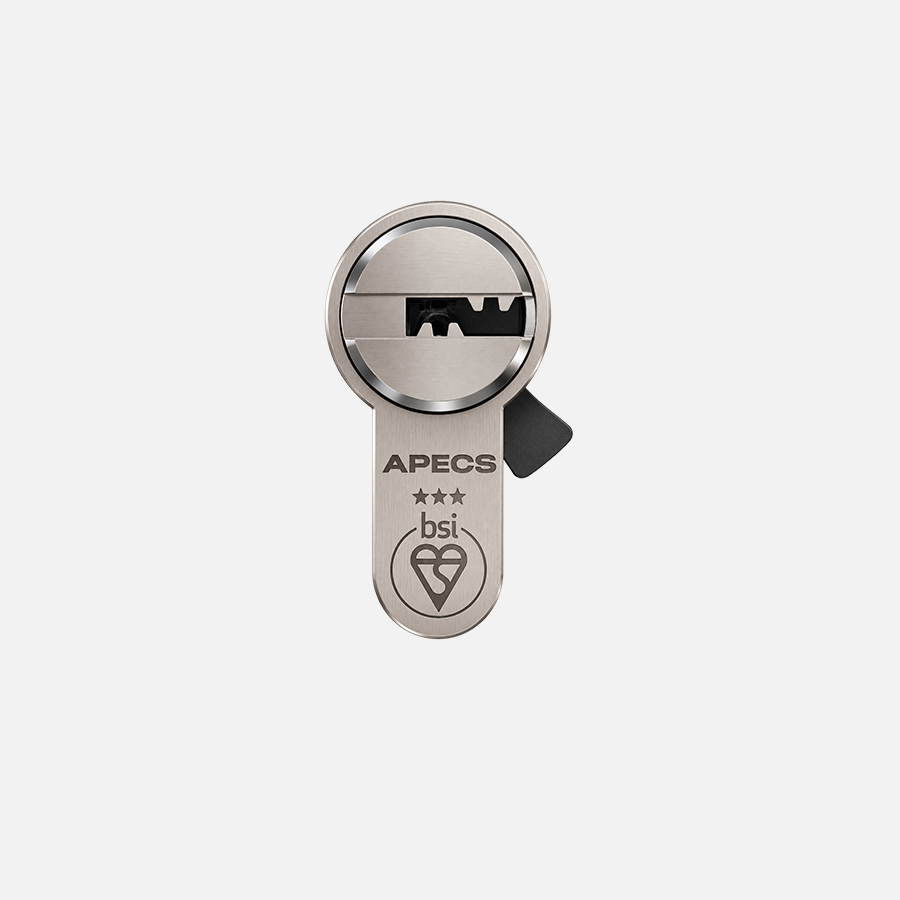

The APECS AP is our BSI 3 Star Kitemark, Sold Secure Diamond Standard Cylinder which offers maximum protection. It safeguards from all forced methods of attack ranging from snapping, drilling, plug-extraction, picking and bumping.

The APECS AP cylinder is specifically designed to protect from unauthorised access by burglars. The AP cylinder is engineered with a unique sacrificial point, which when tampered with externally sets an interlocking cam mechanism into action, preventing any further damage to the internal parts of the cylinder, whilst still keeping the lock operable from the inside.

In the event of snapping, the home owner can still operate the door and exit the property due to the lock's unique mechanism which is engaged when the cylinders external section is snapped off. This mechanism slides the clutch into place, preventing further external damage and manipulation of the cam, whilst keeping the lock operable from the inside.



Material Brass and Hardened Carbon Steel
Mechanism Type: Pin Tumbler
Number of Differs: In Excess of 180,000
Number of Pins: 9
Sizes: 70-110mm & Offsets

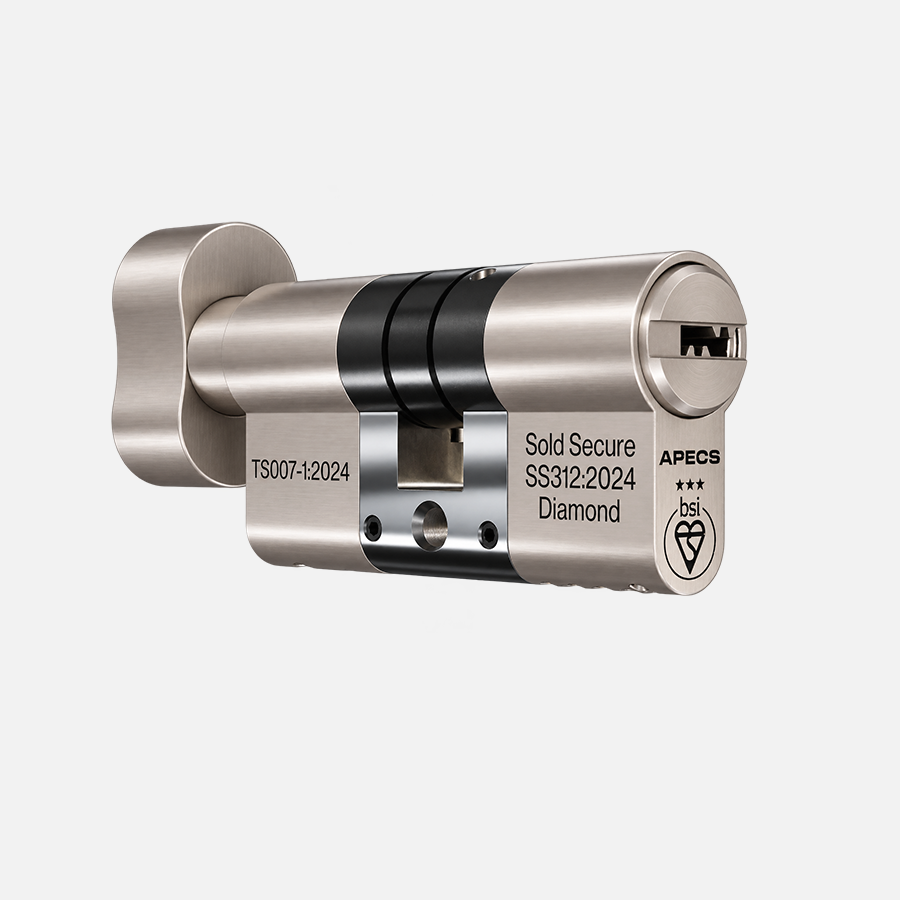

Variations: Key-Key & Thumbturn

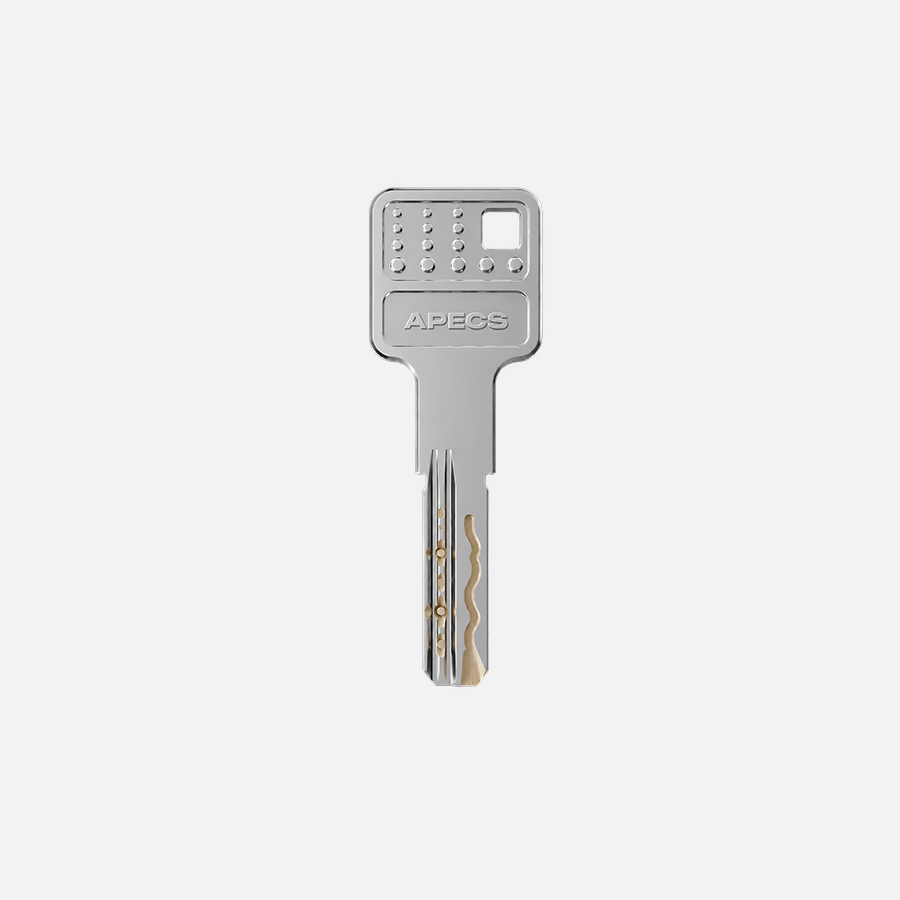

Key Type: Restricted Profile Dimple Key
Number of Keys: 3
Finish Type: Brushed Brass/Brushed Satin Nickel
Packaging Type: Cardboard

Security Information

  • Anti-pick: 4 pins on each side
  • Anti-bump: double locking mechanism with track rail pins in combination with a unique shallow chamber
  • Anti-drill: 1 pin on each side
  • Snap-secure sacrificial point
  • Restricted key profile
  • 10-year guarantee
  • 5-year snap-secure guarantee

Unique Features

  • Double locking mechanism with additional track rail pins
  • Patent pending interlocking mechanism and hardened cam protection block prevents from snapping and plug extraction
  • Patent pending ball-bearing connection ensures additional operation smoothness and strong fixing between the cylinder core and the cam
  • Operable from inside when lock is tampered with externally

Certificates

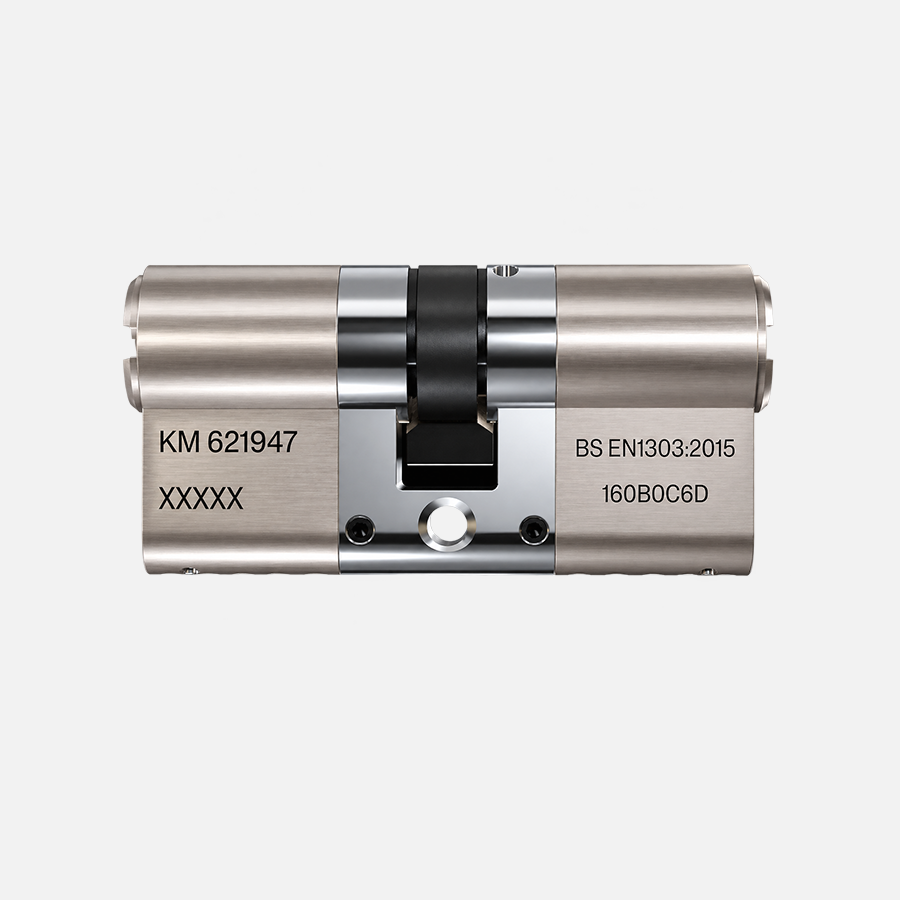

  • BSI 3 Star Kitemark – KM621947
  • Sold Secure Diamond Standard – CLME08161454
  • Tested to TS007:2014 A1:2015
  • Tested to EN1303:2015 — 16000C6D
